Unity 3D Online Leaderboard Tutorial

1789

In this tutorial I will be showing how to implement an online leaderboard in your game.

This is a continuation of a previous tutorial: Unity 3D Login System With PHP and MySQL.

Having leaderboard is a great way to increase replayability by adding a level of competitiveness to your game.

Same as before, this tutorial requires a server with cPanel along with PHP and MySQLi (improved version of MySQL).

Do not have a server yet? Feel free to check the affordable premium hosting by Liquid Web or a cheaper alternative here.

So let's continue!

Making a modification to existing script

If you followed the tutorial above, you would now have a script called 'SC_LoginSystem'. We will be implementing leaderboard feature by adding some code to it.

  • Open 'SC_LoginSystem' script

First we begin by adding the necessary variables:

    //Leaderboard
    Vector2 leaderboardScroll = Vector2.zero;
    bool showLeaderboard = false;
    int currentScore = 0; //It's recommended to obfuscate this value to protect against hacking (search 'obfuscation' on sharpcoderblog.com to learn how to do it)
    int previousScore = 0;
    float submitTimer; //Delay score submission for optimization purposes
    bool submittingScore = false;
    int highestScore = 0;
    int playerRank = -1;
    [System.Serializable]
    public class LeaderboardUser
    {
        public string username;
        public int score;
    }
    LeaderboardUser[] leaderboardUsers;

NOTE: currentScore variable is what you'll be using in the game to track player score. This value will be submitted to the server and stored in the database, it's recommended to obfuscate that value in order to protect against hacking (We have a tutorial on obfuscation which you can check here, specifically the 'Value Scanning' part).

Next we add 2 Enumerators which will be responsible for submitting score and retrieving leaderboard. Add the code below at the end of the script before the closing of the last bracket:

    //Leaderboard
    IEnumerator SubmitScore(int score_value)
    {
        submittingScore = true;

        print("Submitting Score...");

        WWWForm form = new WWWForm();
        form.AddField("email", userEmail);
        form.AddField("username", userName);
        form.AddField("score", score_value);

        using (UnityWebRequest www = UnityWebRequest.Post(rootURL + "score_submit.php", form))
        {
            yield return www.SendWebRequest();

            if (www.isNetworkError)
            {
                print(www.error);
            }
            else
            {
                string responseText = www.downloadHandler.text;

                if (responseText.StartsWith("Success"))
                {
                    print("New Score Submitted!");
                }
                else
                {
                    print(responseText);
                }
            }
        }

        submittingScore = false;
    }

    IEnumerator GetLeaderboard()
    {
        isWorking = true;

        WWWForm form = new WWWForm();
        form.AddField("email", userEmail);
        form.AddField("username", userName);

        using (UnityWebRequest www = UnityWebRequest.Post(rootURL + "leaderboard.php", form))
        {
            yield return www.SendWebRequest();

            if (www.isNetworkError)
            {
                print(www.error);
            }
            else
            {
                string responseText = www.downloadHandler.text;

                if (responseText.StartsWith("User"))
                {
                    string[] dataChunks = responseText.Split('|');
                    //Retrieve our player score and rank
                    if (dataChunks[0].Contains(","))
                    {
                        string[] tmp = dataChunks[0].Split(',');
                        highestScore = int.Parse(tmp[1]);
                        playerRank = int.Parse(tmp[2]);
                    }
                    else
                    {
                        highestScore = 0;
                        playerRank = -1;
                    }

                    //Retrieve player leaderboard
                    leaderboardUsers = new LeaderboardUser[dataChunks.Length - 1];
                    for(int i = 1; i < dataChunks.Length; i++)
                    {
                        string[] tmp = dataChunks[i].Split(',');
                        LeaderboardUser user = new LeaderboardUser();
                        user.username = tmp[0];
                        user.score = int.Parse(tmp[1]);
                        leaderboardUsers[i - 1] = user;
                    }
                }
                else
                {
                    print(responseText);
                }
            }
        }

        isWorking = false;
    }

Next is the leaderboard UI. Add the code below after the void OnGUI():

    //Leaderboard
    void LeaderboardWindow(int index)
    {
        if (isWorking)
        {
            GUILayout.Label("Loading...");
        }
        else
        {
            GUILayout.BeginHorizontal();
            GUI.color = Color.green;
            GUILayout.Label("Your Rank: " + (playerRank > 0 ? playerRank.ToString() : "Not ranked yet"));
            GUILayout.Label("Highest Score: " + highestScore.ToString());
            GUI.color = Color.white;
            GUILayout.EndHorizontal();

            leaderboardScroll = GUILayout.BeginScrollView(leaderboardScroll, false, true);

            for (int i = 0; i < leaderboardUsers.Length; i++)
            {
                GUILayout.BeginHorizontal("box");
                if(leaderboardUsers[i].username == userName)
                {
                    GUI.color = Color.green;
                }
                GUILayout.Label((i + 1).ToString(), GUILayout.Width(30));
                GUILayout.Label(leaderboardUsers[i].username, GUILayout.Width(230));
                GUILayout.Label(leaderboardUsers[i].score.ToString());
                GUI.color = Color.white;
                GUILayout.EndHorizontal();
            }

            GUILayout.EndScrollView();
        }
    }

Add the code below inside the void OnGUI() (before the closing bracket):

        //Leaderboard
        if (showLeaderboard)
        {
            GUI.Window(1, new Rect(Screen.width / 2 - 300, Screen.height / 2 - 225, 600, 450), LeaderboardWindow, "Leaderboard");
        }
        if (!isLoggedIn)
        {
            showLeaderboard = false;
            currentScore = 0;
        }
        else
        {
            GUI.Box(new Rect(Screen.width / 2 - 65, 5, 120, 25), currentScore.ToString());

            if (GUI.Button(new Rect(5, 60, 100, 25), "Leaderboard"))
            {
                showLeaderboard = !showLeaderboard;
                if (!isWorking)
                {
                    StartCoroutine(GetLeaderboard());
                }
            }
        }

And lastly, void Update(), which will contain a code responsible for submitting player score once it changes. Add the code below at the beginning of the script after all the variables:

    //Leaderboard
    void Update()
    {
        if (isLoggedIn)
        {
            //Submit score if it was changed
            if (currentScore != previousScore && !submittingScore)
            {
                if(submitTimer > 0)
                {
                    submitTimer -= Time.deltaTime;
                }
                else
                {
                    previousScore = currentScore;
                    StartCoroutine(SubmitScore(currentScore));
                }
            }
            else
            {
                submitTimer = 3; //Wait 3 seconds when it's time to submit again
            }

            //**Testing** Increase score on key press
            if (Input.GetKeyDown(KeyCode.Q))
            {
                currentScore += 5;
            }
        }
    }

Note the **Testing** part. Since we do not have a playable game, we simply increment the score by pressing Q (You can remove it later if you already have a game with a score system, ex. collect a coin +1 point etc.)

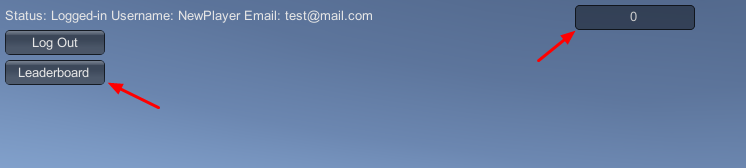

When you press Play and login, you should notice 2 new elements: 'Leaderboard' button and the Score value at the top of the screen.

Now we move to creating MySQL table.

Creating MySQL table

User scores will be stored in a separate MySQL table.

  • Login into CPanel

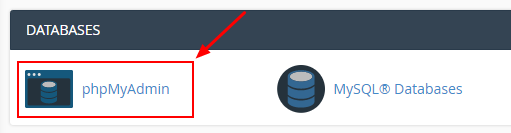

  • Click on "phpMyAdmin" under DATABASES section

  • Click on the database you created in the previous tutorial then click SQL tab

  • Paste the code below into the query editor then click "Go"
SET SQL_MODE = "NO_AUTO_VALUE_ON_ZERO";
SET AUTOCOMMIT = 0;
START TRANSACTION;
SET time_zone = "+00:00";

--
-- Table structure for table `sc_user_scores`
--

CREATE TABLE `sc_user_scores` (
  `row_id` int(11) NOT NULL,
  `user_id` int(11) NOT NULL,
  `user_score` int(11) NOT NULL
) ENGINE=InnoDB DEFAULT CHARSET=latin1;

--
-- Indexes for table `sc_user_scores`
--
ALTER TABLE `sc_user_scores`
  ADD PRIMARY KEY (`row_id`),
  ADD UNIQUE KEY `user_id` (`user_id`);

--
-- AUTO_INCREMENT for table `sc_user_scores`
--
ALTER TABLE `sc_user_scores`
  MODIFY `row_id` int(11) NOT NULL AUTO_INCREMENT, AUTO_INCREMENT=1;
COMMIT;

The query above will create a new table called 'sc_user_scores' which will store highest scores along with user_id as reference to the main 'sc_users' table.

The final part is implementing server-side logic.

Implementing server-side logic

Server-side logic will consist of php scripts that will be responsible for receiving/storing the scores and retrieving leaderboard.

The first script is score_submit.php.

  • Create a new php script and paste the code below inside it:

score_submit.php

<?php
	if(isset($_POST["email"]) && isset($_POST["username"]) && isset($_POST["score"])){
		$errors = array();

		$email = $_POST["email"];
		$username = $_POST["username"];
		$submitted_score = intval($_POST["score"]);
		$user_id = -1;
		$current_highscore = -1;

		//Connect to database
		require dirname(__FILE__) . '/database.php';

		//Check if the user already registered, retrieve its user_id and score value (if exist)
		if ($stmt = $mysqli_conection->prepare("SELECT u.user_id,
			(SELECT user_score FROM sc_user_scores WHERE user_id = u.user_id LIMIT 1) as user_score
			FROM sc_users u WHERE u.email = ? AND u.username = ? LIMIT 1")) {

			/* bind parameters for markers */
			$stmt->bind_param('ss', $email, $username);

			/* execute query */
			if($stmt->execute()){

				/* store result */
				$stmt->store_result();

				if($stmt->num_rows > 0){

					/* bind result variables */
					$stmt->bind_result($user_id_tmp, $score_tmp);

					/* fetch value */
					$stmt->fetch();

					$user_id = $user_id_tmp;
					$current_highscore = $score_tmp;

				}else{
					$errors[] = "User not found.";
				}

				/* close statement */
				$stmt->close();

			}else{
				$errors[] = "Something went wrong, please try again.";
			}
		}else{
			$errors[] = "Something went wrong, please try again.";
		}

		//Submit new score
		if(count($errors) == 0){
			if(is_null($current_highscore) || $submitted_score > $current_highscore){

				if(is_null($current_highscore)){
					//Insert new record
					if ($stmt = $mysqli_conection->prepare("INSERT INTO sc_user_scores (user_id, user_score) VALUES(?, ?)")) {

						/* bind parameters for markers */
						$stmt->bind_param('ii', $user_id, $submitted_score);

						/* execute query */
						if($stmt->execute()){

							/* close statement */
							$stmt->close();

						}else{
							$errors[] = "Something went wrong, please try again.";
						}
					}else{
						$errors[] = "Something went wrong, please try again.";
					}
				}else{
					//Update existing record
					if ($stmt = $mysqli_conection->prepare("UPDATE sc_user_scores SET user_score = ? WHERE user_id = ? LIMIT 1")) {

						/* bind parameters for markers */
						$stmt->bind_param('ii', $submitted_score, $user_id);

						/* execute query */
						if($stmt->execute()){

							/* close statement */
							$stmt->close();

						}else{
							$errors[] = "Something went wrong, please try again.";
						}
					}else{
						$errors[] = "Something went wrong, please try again.";
					}
				}

			}else{
				$errors[] = "Submitted score is lower than the current highscore, skipping...";
			}
		}

		if(count($errors) > 0){
			echo $errors[0];
		}else{
			echo "Success";
		}
	}else{
		echo "Missing data";
	}
?>

The last script is leaderboard.php

  • Create a new php script and paste the code below inside it:

leaderboard.php

<?php
	//Retrieve our score along with leaderboard
	if(isset($_POST["email"]) && isset($_POST["username"])){
		$returnData = array();

		$email = $_POST["email"];
		$username = $_POST["username"];

		//Connect to database
		require dirname(__FILE__) . '/database.php';

		//Get our score and rank
		$returnData[] = "User";
		if ($stmt = $mysqli_conection->prepare("SELECT us.user_score,
			(SELECT COUNT(row_id) FROM sc_user_scores WHERE user_score >= us.user_score LIMIT 1) as rank
			FROM sc_user_scores us
			WHERE us.user_id = (SELECT user_id FROM sc_users WHERE email = ? AND username = ? LIMIT 1) LIMIT 1")) {

			/* bind parameters for markers */
			$stmt->bind_param('ss', $email, $username);

			/* execute query */
			if($stmt->execute()){

				/* store result */
				$stmt->store_result();

				if($stmt->num_rows > 0){

					/* bind result variables */
					$stmt->bind_result($score_tmp, $user_rank);

					/* fetch value */
					$stmt->fetch();

					//Append
					$returnData[0] .= "," . $score_tmp . "," . $user_rank;

				}

				/* close statement */
				$stmt->close();

			}
		}

		//Get top 100 players
		if ($stmt = $mysqli_conection->prepare("SELECT u.username, us.user_score
			FROM sc_users u RIGHT JOIN sc_user_scores us ON u.user_id = us.user_id
			WHERE u.user_id IS NOT NULL ORDER BY us.user_score DESC LIMIT 100")) {

			/* execute query */
			if($stmt->execute()){

				$result = $stmt->get_result();

				while ($row = $result->fetch_assoc())
				{
					$returnData[] = $row["username"] . "," . $row["user_score"];
				}

				/* close statement */
				$stmt->close();

			}
		}

		//The returned string will use '|' symbol for separation between player data and ',' for separation inside the player data
		echo implode('|', $returnData);
	}else{
		echo "Missing data";
	}
?>
  • Upload both score_submit.php and leaderboard.php to the same folder you uploaded php scripts from the previous tutorial.

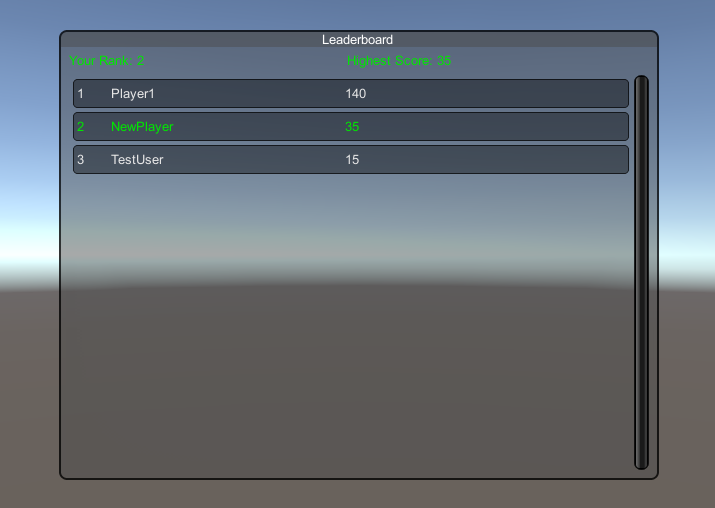

Now when you click on Leaderboard it should load your score/rank along with top 100 players based on their scores:
