How to Make a Snake Game in Unity 3D

How to Make a Snake Game in Unity 3D

by NSDG • Jul 21, 2019 • 0 Comments
173
This is the first tutorial from the series which I call a "One Script Game". Basically the whole game is generated from a script with a minimal amount of manual setup.

In this tutorial we will be creating a classic Snake Game in Unity 3D.



Try it yourself

Unity version used in this tutorial: Unity 2018.3.0f2 (64-bit)

Step 1: Create the Script


Being a "One Script Game" this tutorial only requires 1 script:


SC_SnakeGameGenerator.cs
//You are free to use this script in Free or Commercial projects
//sharpcoderblog.com @2019

using System.Collections.Generic;
using UnityEngine;

public class SC_SnakeGameGenerator : MonoBehaviour
{
    //Game area resolution, the higher number means more blocks
    public int areaResolution = 22;
    //Snake movement speed
    public float snakeSpeed = 10f;
    //Main Camera
    public Camera mainCamera;
    //Materials
    public Material groundMaterial;
    public Material snakeMaterial;
    public Material headMaterial;
    public Material fruitMaterial;

    //Grid system
    Renderer[] gameBlocks;
    //Snake coordenates
    List<int> snakeCoordinates = new List<int>();
    enum Direction { Up, Down, Left, Right };
    Direction snakeDirection = Direction.Right;
    float timeTmp = 0;
    //Block where the fruit is placed
    int fruitBlockIndex = -1;
    //Total accumulated points
    int totalPoints = 0;
    //Game status
    bool gameStarted = false;
    bool gameOver = false;
    //Camera scaling
    Bounds targetBounds;
    //Text styling
    GUIStyle mainStyle = new GUIStyle();

    // Start is called before the first frame update
    void Start()
    {
        //Generate play area
        gameBlocks = new Renderer[areaResolution * areaResolution];
        for (int x = 0; x < areaResolution; x++)
        {
            for (int y = 0; y < areaResolution; y++)
            {
                GameObject quadPrimitive = GameObject.CreatePrimitive(PrimitiveType.Quad);
                quadPrimitive.transform.position = new Vector3(x, 0, y);
                Destroy(quadPrimitive.GetComponent<Collider>());
                quadPrimitive.transform.localEulerAngles = new Vector3(90, 0, 0);
                quadPrimitive.transform.SetParent(transform);
                gameBlocks[(x * areaResolution) + y] = quadPrimitive.GetComponent<Renderer>();
                targetBounds.Encapsulate(gameBlocks[(x * areaResolution) + y].bounds);
            }
        }

        //Scale the MainCamera to fir the game blocks
        mainCamera.transform.eulerAngles = new Vector3(90, 0, 0);
        mainCamera.orthographic = true;
        float screenRatio = (float)Screen.width / (float)Screen.height;
        float targetRatio = targetBounds.size.x / targetBounds.size.y;

        if (screenRatio >= targetRatio)
        {
            mainCamera.orthographicSize = targetBounds.size.y / 2;
        }
        else
        {
            float differenceInSize = targetRatio / screenRatio;
            mainCamera.orthographicSize = targetBounds.size.y / 2 * differenceInSize;
        }
        mainCamera.transform.position = new Vector3(targetBounds.center.x, targetBounds.center.y + 1, targetBounds.center.z);

        //Generate the Snake with 3 blocks
        InitializeSnake();
        ApplyMaterials();

        mainStyle.fontSize = 24;
        mainStyle.alignment = TextAnchor.MiddleCenter;
        mainStyle.normal.textColor = Color.white;
    }

    void InitializeSnake()
    {
        snakeCoordinates.Clear();
        int firstlock = Random.Range(0, areaResolution - 1) + (areaResolution * 3);
        snakeCoordinates.Add(firstlock);
        snakeCoordinates.Add(firstlock - areaResolution);
        snakeCoordinates.Add(firstlock - (areaResolution * 2));

        gameBlocks[snakeCoordinates[0]].transform.localEulerAngles = new Vector3(90, 90, 0);
        fruitBlockIndex = -1;
        timeTmp = 1;
        snakeDirection = Direction.Right;
        totalPoints = 0;
    }

    // Update is called once per frame
    void Update()
    {
        if (!gameStarted)
        {
            if (Input.anyKeyDown)
            {
                gameStarted = true;
            }
            return;
        }
        if (gameOver)
        {
            //Flicker the snake blocks
            if (timeTmp < 0.44f)
            {
                timeTmp += Time.deltaTime;
            }
            else
            {
                timeTmp = 0;
                for (int i = 0; i < snakeCoordinates.Count; i++)
                {
                    if (gameBlocks[snakeCoordinates[i]].sharedMaterial == groundMaterial)
                    {
                        gameBlocks[snakeCoordinates[i]].sharedMaterial = (i == 0 ? headMaterial : snakeMaterial);
                    }
                    else
                    {
                        gameBlocks[snakeCoordinates[i]].sharedMaterial = groundMaterial;
                    }
                }
            }

            if (Input.GetKeyDown(KeyCode.Space))
            {
                InitializeSnake();
                ApplyMaterials();
                gameOver = false;
                gameStarted = false;
            }
        }
        else
        {
            if (timeTmp < 1)
            {
                timeTmp += Time.deltaTime * snakeSpeed;
            }
            else
            {
                timeTmp = 0;
                if (snakeDirection == Direction.Right || snakeDirection == Direction.Left)
                {
                    //Detect if the Snake hit the sides
                    if (snakeDirection == Direction.Left && snakeCoordinates[0] < areaResolution)
                    {
                        gameOver = true;
                        return;
                    }
                    else if (snakeDirection == Direction.Right && snakeCoordinates[0] >= (gameBlocks.Length - areaResolution))
                    {
                        gameOver = true;
                        return;
                    }

                    int newCoordinate = snakeCoordinates[0] + (snakeDirection == Direction.Left ? -areaResolution : areaResolution);
                    //Snake has ran into itself, game over
                    if (snakeCoordinates.Contains(newCoordinate))
                    {
                        gameOver = true;
                        return;
                    }
                    if (newCoordinate < gameBlocks.Length)
                    {
                        for (int i = snakeCoordinates.Count - 1; i > 0; i--)
                        {
                            snakeCoordinates[i] = snakeCoordinates[i - 1];
                        }
                        snakeCoordinates[0] = newCoordinate;
                        gameBlocks[snakeCoordinates[0]].transform.localEulerAngles = new Vector3(90, (snakeDirection == Direction.Left ? -90 : 90), 0);
                    }
                }
                else if (snakeDirection == Direction.Up || snakeDirection == Direction.Down)
                {
                    //Detect if snake hits the top or bottom
                    if (snakeDirection == Direction.Up && (snakeCoordinates[0] + 1) % areaResolution == 0)
                    {
                        gameOver = true;
                        return;
                    }
                    else if (snakeDirection == Direction.Down && (snakeCoordinates[0] + 1) % areaResolution == 1)
                    {
                        gameOver = true;
                        return;
                    }

                    int newCoordinate = snakeCoordinates[0] + (snakeDirection == Direction.Down ? -1 : 1);
                    //Snake has ran into itself, game over
                    if (snakeCoordinates.Contains(newCoordinate))
                    {
                        gameOver = true;
                        return;
                    }
                    if (newCoordinate < gameBlocks.Length)
                    {
                        for (int i = snakeCoordinates.Count - 1; i > 0; i--)
                        {
                            snakeCoordinates[i] = snakeCoordinates[i - 1];
                        }
                        snakeCoordinates[0] = newCoordinate;
                        gameBlocks[snakeCoordinates[0]].transform.localEulerAngles = new Vector3(90, (snakeDirection == Direction.Down ? 180 : 0), 0);
                    }
                }

                ApplyMaterials();
            }

            if (Input.GetKeyDown(KeyCode.RightArrow))
            {
                int newCoordinate = snakeCoordinates[0] + areaResolution;
                if (!ContainsCoordinate(newCoordinate))
                {
                    snakeDirection = Direction.Right;
                }
            }
            if (Input.GetKeyDown(KeyCode.LeftArrow))
            {
                int newCoordinate = snakeCoordinates[0] - areaResolution;
                if (!ContainsCoordinate(newCoordinate))
                {
                    snakeDirection = Direction.Left;
                }
            }
            if (Input.GetKeyDown(KeyCode.UpArrow))
            {
                int newCoordinate = snakeCoordinates[0] + 1;
                if (!ContainsCoordinate(newCoordinate))
                {
                    snakeDirection = Direction.Up;
                }
            }
            if (Input.GetKeyDown(KeyCode.DownArrow))
            {
                int newCoordinate = snakeCoordinates[0] - 1;
                if (!ContainsCoordinate(newCoordinate))
                {
                    snakeDirection = Direction.Down;
                }
            }
        }

        if (fruitBlockIndex < 0)
        {
            //Place a fruit block
            int indexTmp = Random.Range(0, gameBlocks.Length - 1);

            //Check if the block is not occupied with a snake block
            for (int i = 0; i < snakeCoordinates.Count; i++)
            {
                if (snakeCoordinates[i] == indexTmp)
                {
                    indexTmp = -1;
                    break;
                }
            }

            fruitBlockIndex = indexTmp;
        }
    }

    void ApplyMaterials()
    {
        //Apply Snake material
        for (int i = 0; i < gameBlocks.Length; i++)
        {
            gameBlocks[i].sharedMaterial = groundMaterial;
            bool fruitPicked = false;
            for (int a = 0; a < snakeCoordinates.Count; a++)
            {
                if (snakeCoordinates[a] == i)
                {
                    gameBlocks[i].sharedMaterial = (a == 0 ? headMaterial : snakeMaterial);
                }
                if (snakeCoordinates[a] == fruitBlockIndex)
                {
                    //Pick a fruit
                    fruitPicked = true;
                }
            }
            if (fruitPicked)
            {
                fruitBlockIndex = -1;
                //Add new block
                int snakeBlockRotationY = (int)gameBlocks[snakeCoordinates[snakeCoordinates.Count - 1]].transform.localEulerAngles.y;
                //print(snakeBlockRotationY);
                if (snakeBlockRotationY == 270)
                {
                    snakeCoordinates.Add(snakeCoordinates[snakeCoordinates.Count - 1] + areaResolution);
                }
                else if (snakeBlockRotationY == 90)
                {
                    snakeCoordinates.Add(snakeCoordinates[snakeCoordinates.Count - 1] - areaResolution);
                }
                else if (snakeBlockRotationY == 0)
                {
                    snakeCoordinates.Add(snakeCoordinates[snakeCoordinates.Count - 1] + 1);
                }
                else if (snakeBlockRotationY == 180)
                {
                    snakeCoordinates.Add(snakeCoordinates[snakeCoordinates.Count - 1] - 1);
                }
                totalPoints++;
            }
            if (i == fruitBlockIndex)
            {
                gameBlocks[i].sharedMaterial = fruitMaterial;
                gameBlocks[i].transform.localEulerAngles = new Vector3(90, 0, 0);
            }
        }
    }

    bool ContainsCoordinate(int coordinate)
    {
        for (int i = 0; i < snakeCoordinates.Count; i++)
        {
            if (snakeCoordinates[i] == coordinate)
            {
                return true;
            }
        }

        return false;
    }

    void OnGUI()
    {
        //Display Player score and other info
        if (gameStarted)
        {
            GUI.Label(new Rect(Screen.width / 2 - 100, 5, 200, 20), totalPoints.ToString(), mainStyle);
        }
        else
        {
            GUI.Label(new Rect(Screen.width / 2 - 100, Screen.height / 2 - 10, 200, 20), "Press Any Key to Play\n(Use Arrows to Change Direction)", mainStyle);
        }
        if (gameOver)
        {
            GUI.Label(new Rect(Screen.width / 2 - 100, Screen.height / 2 - 20, 200, 40), "Game Over\n(Press 'Space' to Restart)", mainStyle);
        }
    }
}
(The Script above creates a grid of Primitive Quads, then changes their materials to one of the four: Either a Background material, a Snake Head material, Snake Body material or an Apple material.
It also automatically places the Camera directly above the grid system and changes its orthographic size to encapsulate the collective Bounds of all the blocks).




Step 2: Setup the Snake Game


Now let's setup the Snake game using the script above:


  • Create new Scene
  • Change the Game view resolution so the width and height are equal (ex. 600px x 600px)



  • Create a new GameObject (GameObject -> Create Empty) and name it "_GameGenerator"
  • Attach SC_SnakeGameGenerator.cs script to _GameGenerator Object

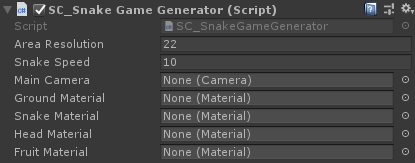

As you will notice SC_SnakeGameGenerator have some variables that need to be assigned:



  • Main Camera variable is self explanatory, assign the default Main Camera.

  • Now for the materials, create 4 materials (Right Click -> Create -> Material) and name them respectively "ground_material", "snake_material", "head_material" and "fruit_material":



For the ground_material change its Shader to Unlit/Color and change the Main Color to black:



For the other 3 Materials change the Shader to Unlit/Texture and assign the Textures below:

For snake_material:



For head_material:



For fruit_material:



  • Assign the materials to variables

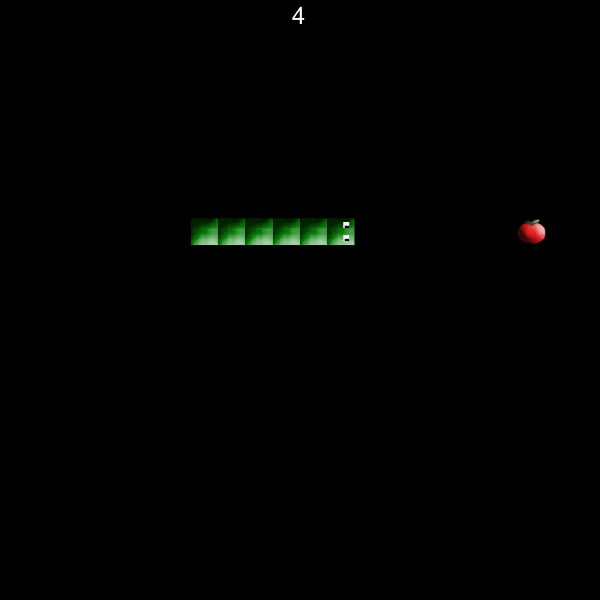

Now it's time to press Play and test the game:



Everything works as expected, now you have a playable Snake game in Unity 3D.
